Corrugated steel roofing sheets have been around for many years and are still popular today, giving a more traditional look, in fact corrugated steel roofing is the only cladding that should be used in conservation areas. We offer many different colours and galvanized roofing sheet.

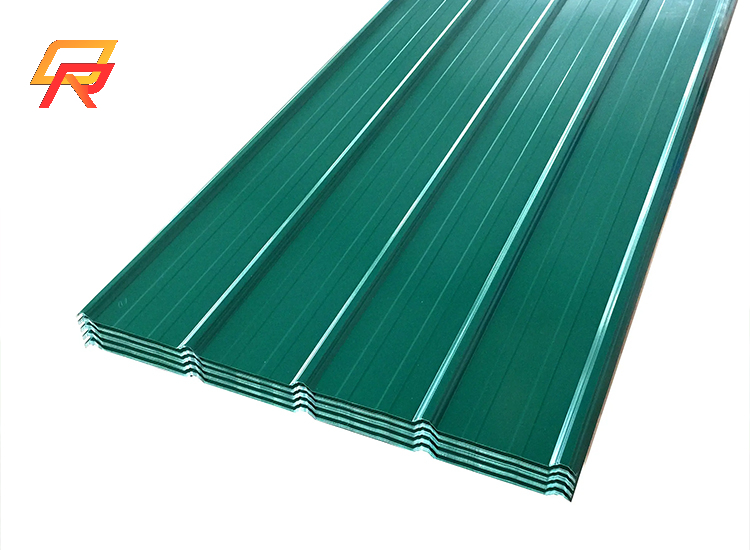

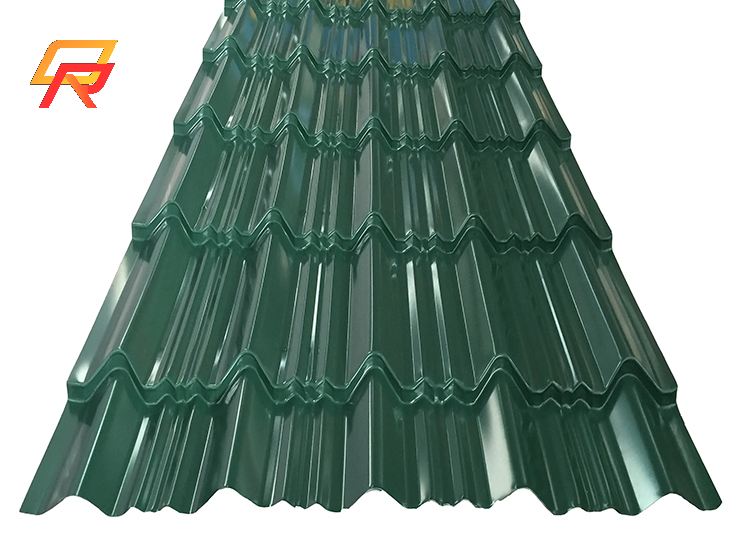

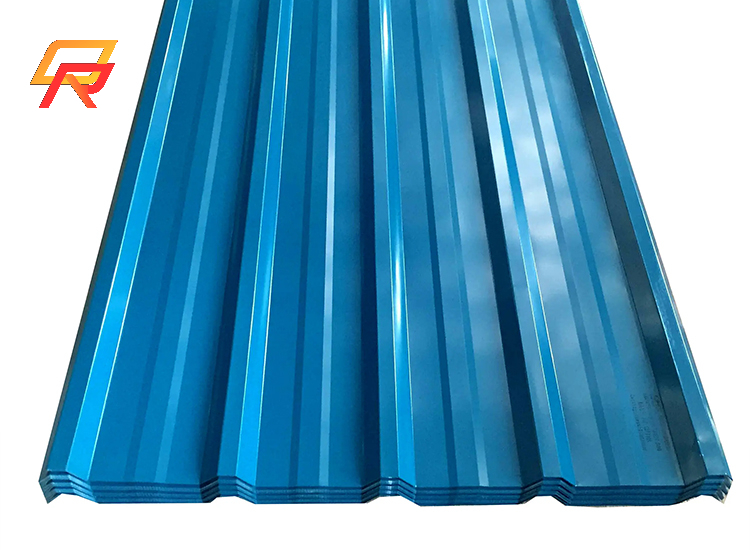

color coated galvanized corrugated roofing sheet |
Name | color coated corrugated roofing sheet |
Material | SGCC,SGCH,JIS G3302,DX51D,DX52D,DX53D |
Thickness | 0.10 -1mm |
Width | 600-1100 mm |
length | 2-5 meters |
Tolerance | Thickness: +/-0.02mm |
Width:+/-2mm |
Color coating | Zinc Coating: 30g/m2-275g/m2 |
Color Coating: Top:15-25µm / Back: 5-8 µm |
Surface treatment | unoil,dry,chromate passivated, non-chromate passivated |
Certification | ISO 9001-2008,SGS,CE,BV |
Technique | Cold rolled—>hot dipped galvanizing—>Color Coated —> corrugated |
Weight of each package | As required |
Depth of corrugated | from 15mm to 18mm |
Pitch | from 75mm to 78mm |
Colors | refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red. |
Corrugated Sheet Raw | Galvanized steel, Aluzinc Steel, Aluzinc Pre-painted sheet and |
Materials | Aluminium sheet. |
Gloss | The gloss can changeable by Customers' Request.we can also do some High gloss. |
Paint type | PE or PVDF |
Standard | GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN |
Grade | CGCC/SGCC/SGCH/SPCC |
Yield strength | 550MPA/As required |
Tensile strength | 600MPA/As required |
Hardness | Full hard/soft/As required |
Application | various roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc. |
